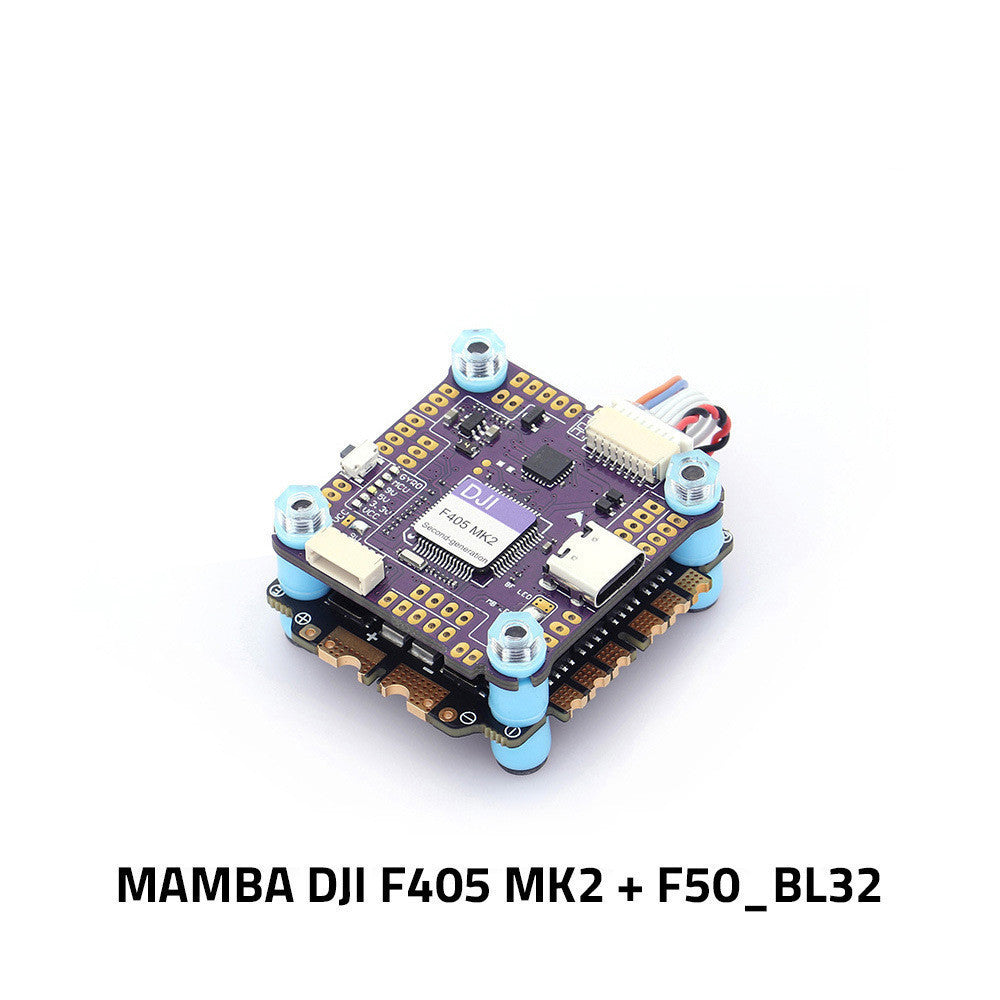

MAMBADJI F405 MK2+F50_BL32

Product information:

Material: Other
Whether it is multifunctional: No
Color:MAMBADJI F405 MK2+F50_BL32
Type of aircraft: MAMBA
Flight control firmware: Mamba F405US_I2C
Flight control: MAMBA DJI F405 MK2
MCU: 168MHz STM32F405RGT6
Sensor: MPU6000
Black box: 16M Flash Memory
Number of serial ports: 6Set
ESC program: Dshot300/600/1200
ESC return: Yes
Flight control status indicator: Yes
LED control switch: BF LED/MB LED (4 Set 2812 LED)
Input voltage: 3~6S Lipo (12.6~25.2V)
TVS power protection: Yes
BEC: 3.3V 0.5A& 5V 3A & (DJI) 9V 3A
Mounting hole position: 30.5mm, M3

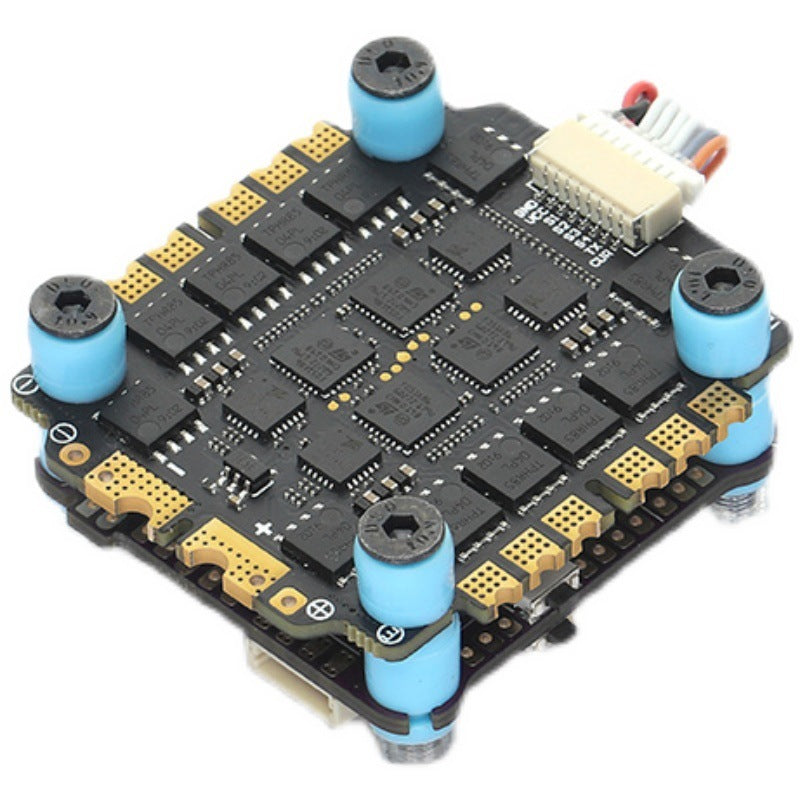

ESC: MAMBA F40_BLS
Input voltage: 3~6S Lipo (12.6V~25.2V)
Rated current: 40A×4
Peak current: 50A (10S)
BEC: NO
Program: Dshot300/600
Firmware: BLHeli_S CH40
TVS power protection: Yes
Mounting hole position: 30.5mm/M3

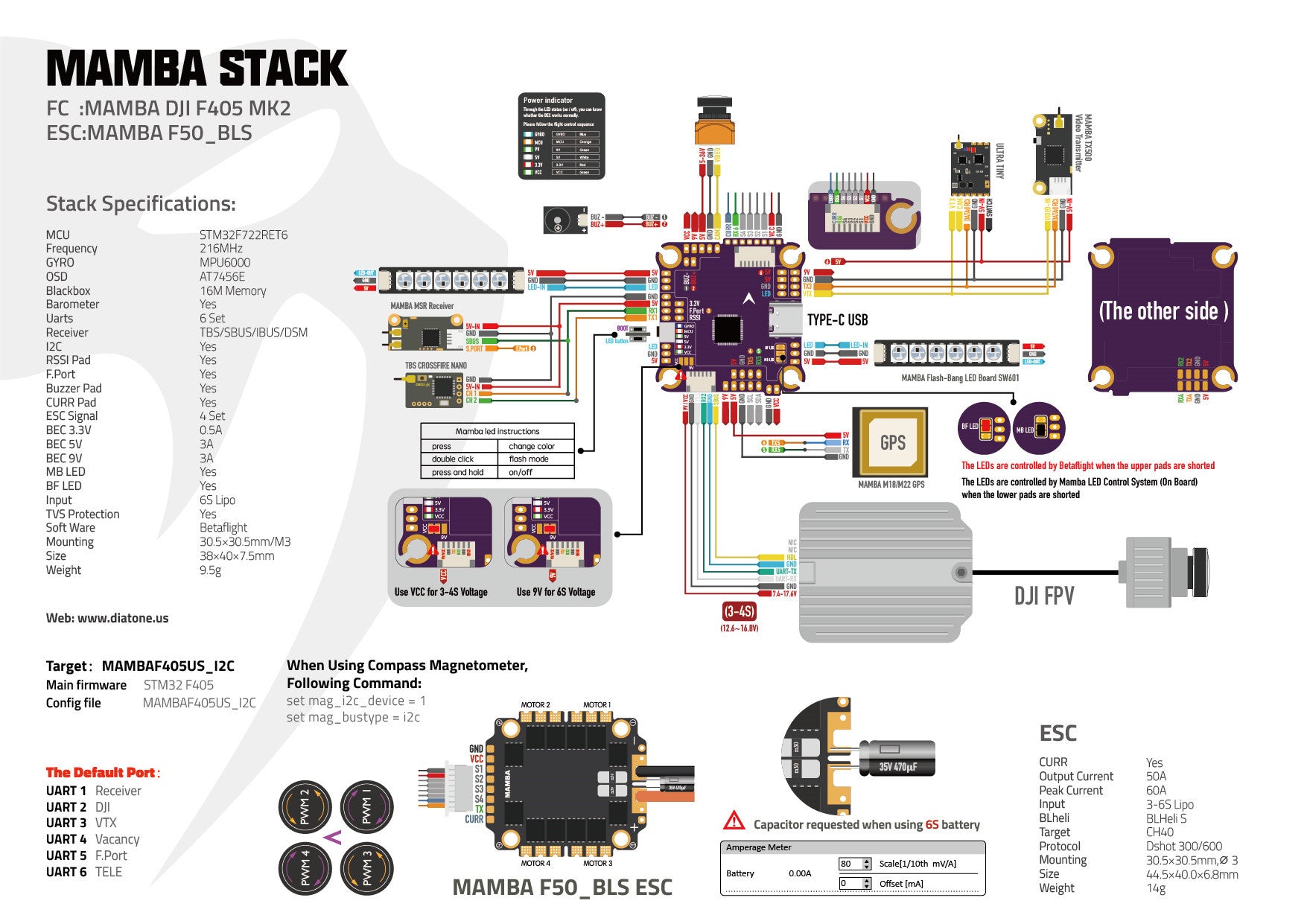

ESC: MAMBA F50_BLS
Input voltage: 3~6S Lipo (12.6V~25.2V)
Rated current: 50A×4
Peak current: 60A (10S)
Program: Dshot300/600
Firmware: BLHeli_S CH40
TVS power protection: Yes
Mounting hole position: 30.5mm/M3

Packing list:

High frequency capacitor 470uF/35V ×1
8pin sh1.0 ×2
12AWG 100mm ×2
AMASS Original XT60 ×1
